Equip Island Fuel Dispensers with ULC Approved Spill Containment.

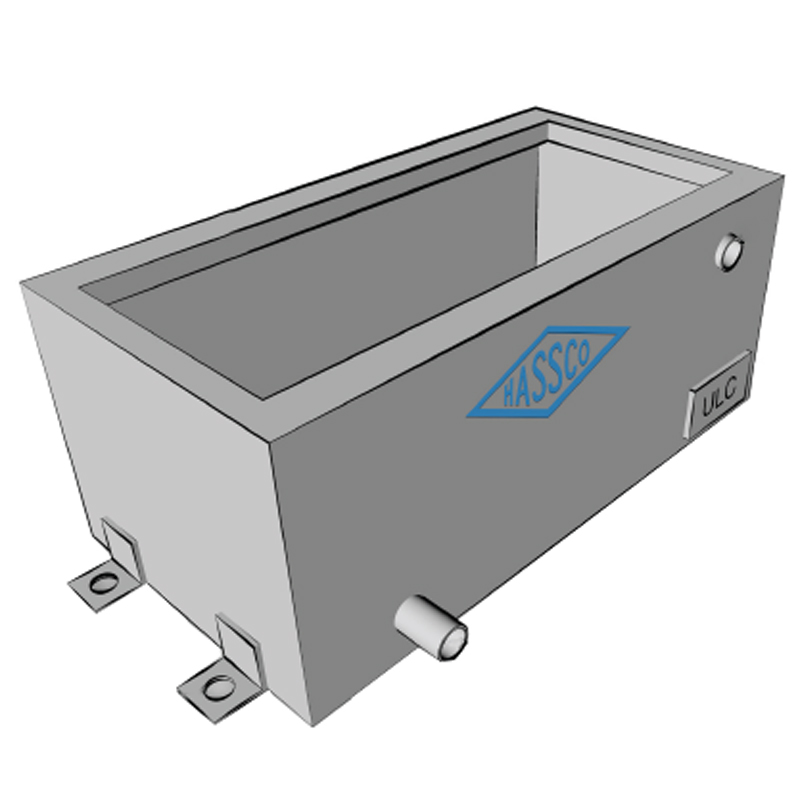

This ULC-approved spill containment under-dispenser sump provides a dedicated containment solution for fuel dispensers installed on concrete islands, pads, and marina docks. Constructed from Type 304 stainless steel, it captures leaks and spills within the sump, helping protect surrounding areas from fuel releases, environmental damage, and costly cleanup.
Designed for new installations and existing sites, this containment sump combines durable construction with integrated dispenser support components for a practical installation. Contact RDI Solutions for pricing and installation requirements.
ULC-Approved Containment Features
- ULC Approved Spill Containment: Provides approved containment for island fuel dispensers.
- 304 Stainless Steel Construction: Built with Type 304 stainless steel for durable service.
- Integrated Shear Valve Support: Includes a galvanized channel support bracket with cross brace.
- Secure Installation: Four bolt-down lugs provide mounting points.
- Versatile Applications: Suitable for new or existing fuel dispenser installations.
- Custom Options Available: Powder coating, dual piping, and custom sizing options.
ULC Approved Containment Specifications
- Product Type: Under-Dispenser Sump
- Conformity: CAN/UL/ULC S664
- Material: Type 304 Stainless Steel
- Material Thickness: 0.098" (2.5 mm)
- Overall Dimensions: 36" L × 20" W × 14" H
- Opening Dimensions: 22" L × 14" W
- Weight: 150 lb
- Shear Valve Support: 1½" Galvanized Channel with Cross Brace
- Mounting: Four Bolt-Down Lugs
- Options: Powder Coating, Dual Piping, Standard and Custom Sizing

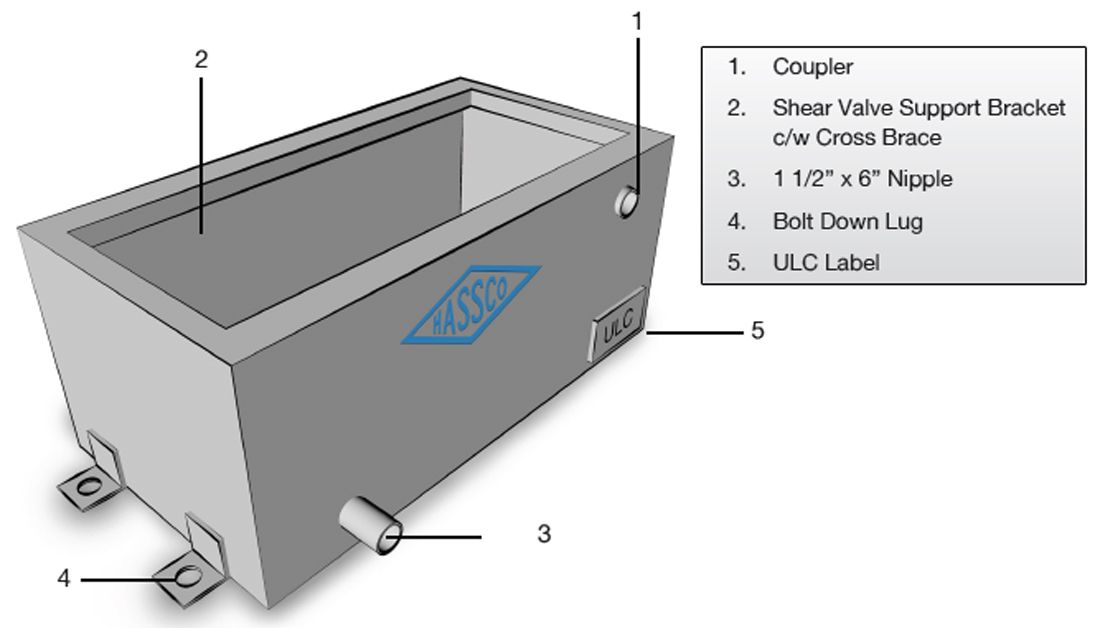

What’s Included
- Dispenser Sump with Approved ULC label
- 1" Coupler
- Shear Valve Support Bracket c/w Cross Brace
- 1½" × 6" Nipple
- (4) Bolt-Eown Lugs
