Cubetainer Stackable Oil Tanks and Gravity Feed Systems

Cubetainer stackable oil tanks and gravity feed systems for auto service shops and quick lube stores minimize total fluid expenses, optimize floor space, and ensure secure and efficient storage for a wide range of bulk fluids, including oils, lubricants, hydraulic fluids, ATF, antifreeze, and DEF.

Consolidate the storage of all your bulk fluids into one compact footprint, eliminating the hassle and clutter of packaged goods and drums, while also reducing overall fluid expenses by enabling bulk oil delivery.

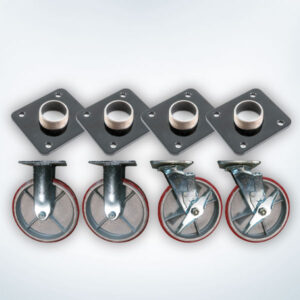

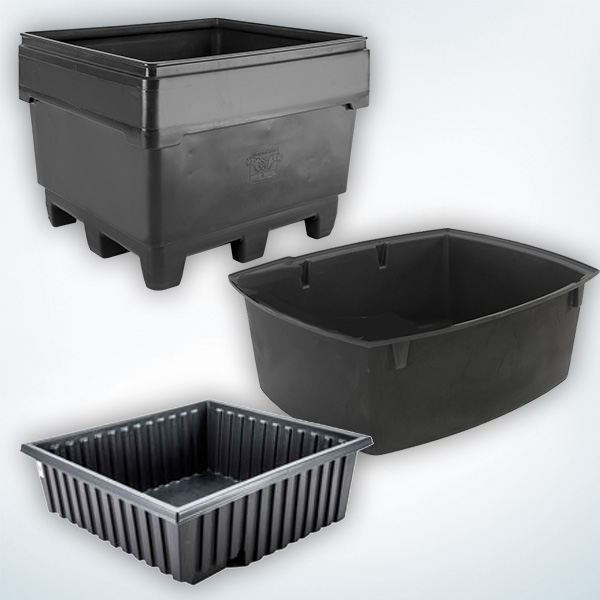

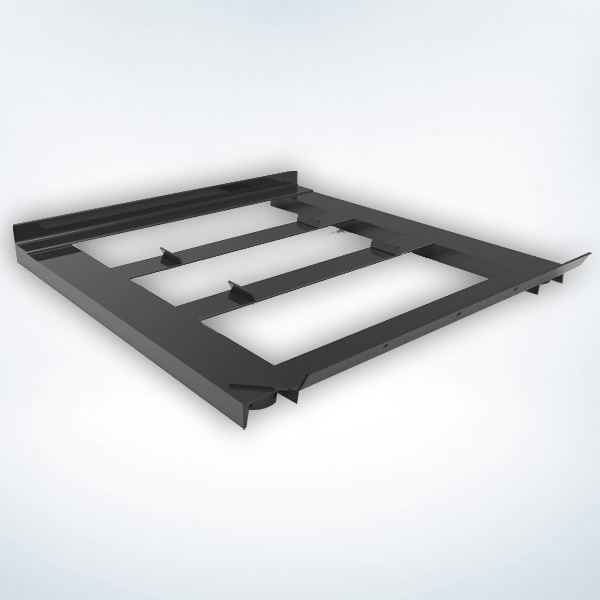

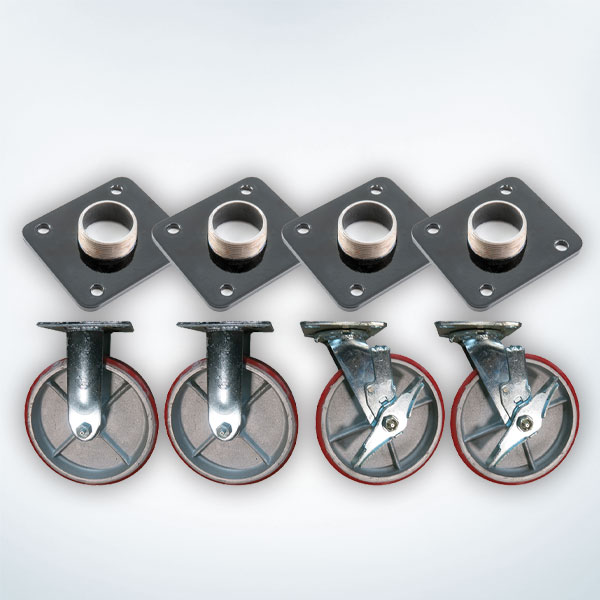

Customize a tank or system to your specifications with pump and hose reel dispense packages, oil bars, SPCC compliant secondary containment vessels, or with rolling casters or onto a secure forkliftable skid base for mobile fluid dispensing systems.

Constructed from virgin polyethylene UL rated food-grade resins, Cubetainer offers a visual fluid inventory, allowing for easy monitoring of fluid levels. The patented fill port design facilitates convenient filling in each stacked tank, while the 1″ NPT stainless steel dispense fitting ensures efficient gravity feed dispense.

Cubetainer Stackable Oil Tanks Specifications

Cubetainer Tanks are 36″W x 36″D in 227, 303, 454, 681 and 984 Liter (60, 80, 120, 180 and 260 Gallon) Capacities.

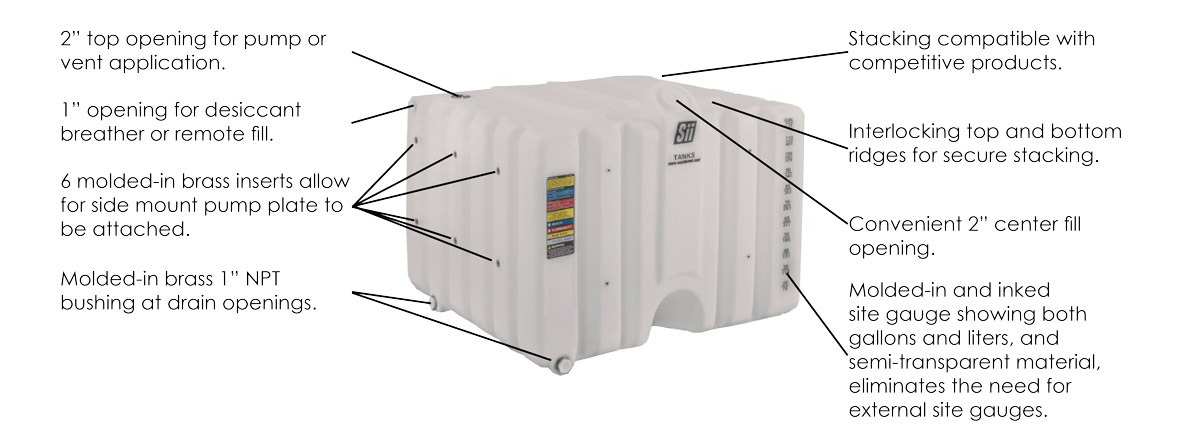

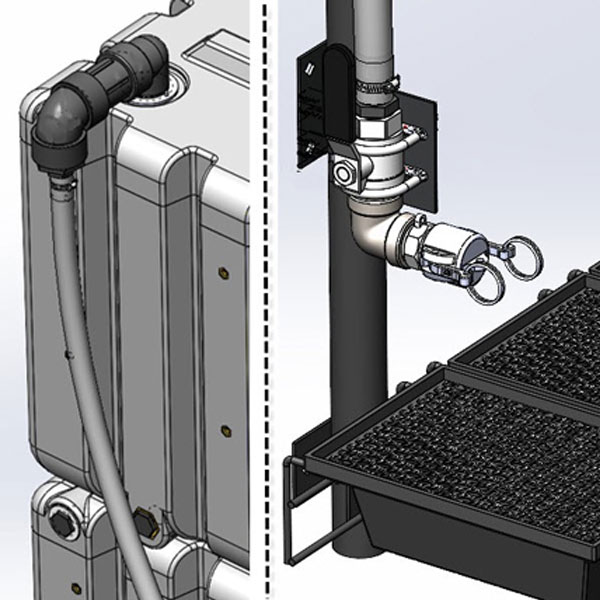

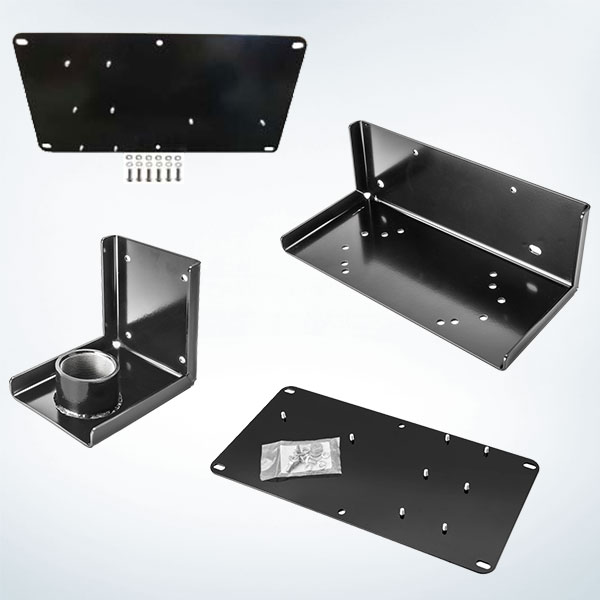

With a user-friendly 2in center fill port, Cubetainer tanks are manufactured from virgin high-density FDA compliant polyethylene resin. These translucent tanks feature molded-in and inked fluid level markers for fluid level inspection. Stackable Cubetainer Tanks are equipped with a 2-inch top opening for pump or vent applications, a 1-inch upper side opening for desiccant breather or top tank remote fill, and a molded-in 1in brass drain insert. Six side molded-in brass inserts enable a direct attachment of a side mount pump plate to the tank. The 120 Gallon Cubetainer tank is designed to fit through 32-inch doorways, ensuring ease of transportation and installation.

Cubetainer Gravity Feed System Specifications

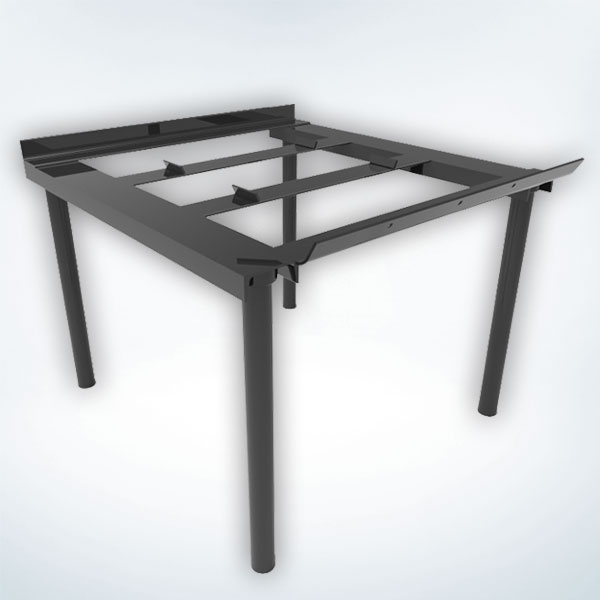

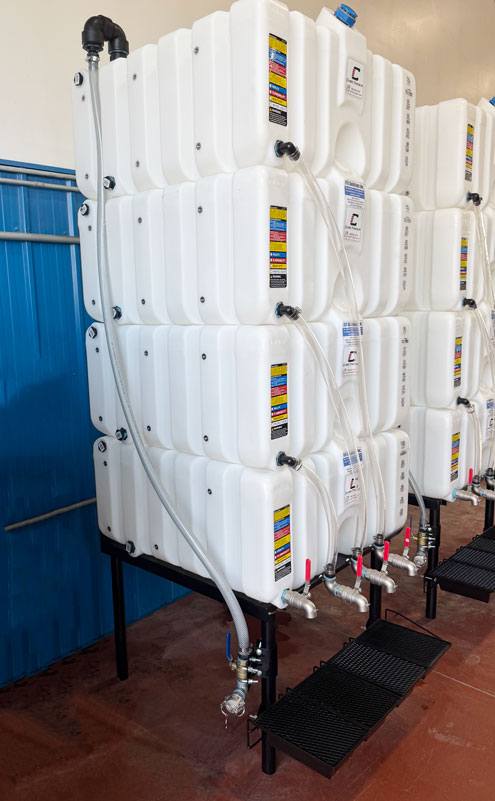

Configure a stackable Cubetainer Gravity Feed System with 2, 3, or 4 36″W x 36″D tanks. Each system includes tank(s), a 24″H stand, drip tray assembly, 316SS spring valves, and a gravity feed hose accessory package, ensuring seamless connections for efficient fluid management.
