Roth Double Wall Tanks

Roth Double Wall Tanks can store over 1500 Litres / 400 Gallons of motor oils, hydraulic fluid, diesel fuel and other automotive fluids. Doubled walled tanks have a built-in secondary containment vessel, and meet UL SU2258 standards. The tanks are rust resistant inside and out and are designed to prevent spills and leaks.

The outer tank layer is made of leak-proof, weld-free galvanized steel and is roll-seamed with an oil and fire-resistant seal. This outer steel layer can contain up to 110% of the capacity of the inner tank. The inner tank is made of blow-molded, high-density, seamless polyethylene that is leak proof and will never corrode. Roth double wall tanks are available in bulk capacities from 400 to 1500 Litres (110 to 400 Gallons), for more flexibility for placement in any garage, service station or lube shop.


Roth Double Wall Tanks


Roth Double Wall TanksDouble Walled TankDouble Wall Tank Dispense PackageMobile Double Wall Tank with Pump Pkg.


Roth Double Wall Tank Specifications

UL CertifiedRoth Double wall tanks are certified to UL SU2258. Roth Tanks are compliant with NFPA 30 & 30A.

DWT110 DWT165 DWT275 DWT275LH DWT400
416 Litre / 110 Gal 625 Litre / 165 Gal 1041 Litre / 275 Gal 1041 Litre / 275 Gal 1514 Litre / 400 Gal
28"Wide 28"Wide 28"Wide 30"Wide 30"Wide
29"Deep 29"Deep 43"Deep 51"Deep 64"Deep
44"H 61"H 61"H 54"H 68"H
106 lbs. 132 lbs. 167 lbs. 208 lbs. 333 lbs.

Roth Double Wall Tank Dispense Packages

Preset and Non-Preset Roth Packages

Preset Double Walled Roth Tank Our PRESET Metered Package includes a Double Wall Tank with Optical Leak Alarm, Liquid Level Gauge, Lockable Fill Cap with Vent, Graco 3:1 Pump Package With 50’ Reel, Air Filter Regulator and Digital Dispensing Preset Gun.

Our NON-PRESET Metered Package includes a Double Wall Roth Tank with Optical Leak Alarm, Liquid Level Gauge, Lockable Fill Cap with Vent, Graco 3:1 Pump Package With 50’ Reel, Air Filter Regulator and Digital Dispensing Manual Gun.


Fire-Ball Pump Roth Packages

Graco Fire-Ball Pump Package for Roth Oil TanksOur Fire-Ball Pump Packages withstand rigorous action to manage your heavy fluids for a longer distance to multiple points of dispense. Utilizing Fluidall’s steel pump bracket secures Graco’s heavy duty Fire-Ball 300 pump on a Roth Double Wall Tank. RDI’s Fire-Ball package includes: Roth Double Wall Tank, Graco Fire-Ball Non-Preset Dispense Package (5:1 Fire-Ball 300 Pump, Hose Reel with 50′ Hose, Digital Gun & Air Pressure Regulator), Down Tube, Fluid Level Gauge, Lockable Fill Cap with Vent, and Pump and Reel Bracket).


Roth Tank Plus Package

Roth Double Walled Tank Plus PackageOur Roth Oil Tank Plus Package includes a fluid level gauge which monitors the level of the fluid, a lockable vented fill cap that allows the tank to breath, and an optical leak alarm. This double wall oil tank package is ideal when pumps and other fluid handling equipment does not need to be purchased.


Roth Oil Tap Packages

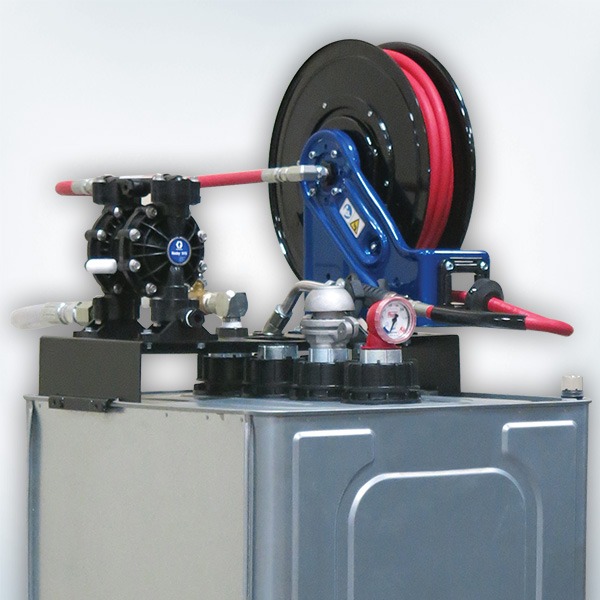

Roth Oil Tap PackagesOur Oil Tap Packages complete with one spring-loaded non-drip oil dispense valve and a removable mesh drip tray. The Oil Bar provides 15" of clearance below the tap, ideal for quick and easy top-offs. This kit is also available with a Graco pump (shown), as a metered or non-metered kit.
