BOP20HV Battery Operated Electric Pumps and Accessories for Oil Jugs & 5 Gallon Pails

No Lifting, No Pouring, No Spillage, No Kidding! Increase productivity, reduce fatigue & spillage while adding safety to your maintenance program.

BOP20HV Electric Pumps for Oil Safe


BOP20HV for Oil ContainersBOP20HV for TricoBOP20HV for Oil SafeBOP20HV for Des CaseBOP20HV for 5 Gallon Oil PailsBOP20HV for Oil Pails

The BOP20HV is the industry’s first 18V Battery Oil Pump used in Oil Jugs & 5 Gallon Pails. Pumps up to 140W oils up to 1.5 GPM. No hand pumping and no lifting, simply turn the Powerhead on and engage the on demand nozzle.

Recently tested and approved for OilSafe’s 10L and 5L Oil containers. Screw the BOP20HV Oil Pump directly into the OilSafe 5L or 10L Container with Utility Lid – it’s a perfect fit! The BOP20HV also fits Des-Case 10L and 7L containers, Trico’s 4 gallon and 3 gallon size units, as well as Xpel Oil Storage Containers.

BOP20HV Battery Operated Electric Pump Features and Benefits

  • On Demand Control Nozzle
  • Portable Powerhead (Powers multiple stems)
  • Sealed Wetted Parts
  • Multiple oils with one Powerhead 18V rechargeable 2.0Ah battery delivers up to 40GAL
  • Add a Stem Kit for differing oils
  • Designed for 5 Gallon Pails
  • Lubricant Range: Up to 140W / ISO680, ATF and Coolant Stem Kits Available
  • Delivery Rate: Up to 1.5+ GPM @ 68F – cooler temps will reduce output
  • Hose: 5 ft of 3/4" Hose. 10ft and 20ft options are available
  • Charger: 45 min fast charge
  • Battery: 18V Li-Ion Smart Battery 2.0Ah up to 40 GAL/Charge
  • Fully Serviceable with 2 Year Warranty

BOP20HV Battery Operated Electric Pumps & Stem Kits

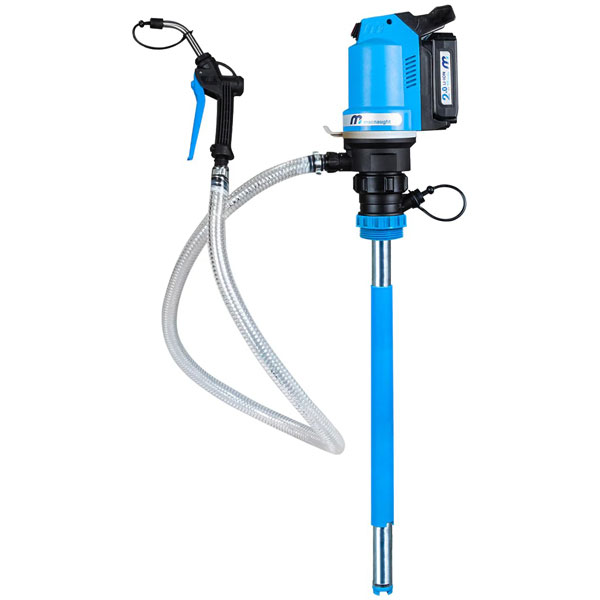

BOP20HV 5 Gallon Oil Kit - BP20S-OHUComplete BOP20HV 5 Gallon Oil Kit with Powerhead
Part No# BP20S-OHU
Designed for Trico, Oil Safe, Des Case and 5 Gallon Pails up to 140W
The kit has everything needed to pump oil. Powerhead, Stem with 5ft of 3/4 hose with On Demand Nozzle, 18V Li-Ion Battery, Battery Charger, 2 Pail Adapters.
Weight: 10.5 lbs
Dimension: 14" x 20" x 5"


BOP20HV 5 Gallon Oil Stem - BP20X-OHABP20X-OHA 5 Gallon Oil Stem Kit with Hose
Part No# BP20X-OHA
Designed for 5 Gallon Pails up to 140W
Complete with Oil Stem and 5ft of 3/4 hose with On Demand Nozzle. Use as a spare stem for 5-gallon differing oils. Typically purchased with a BOP20HV Kit.
Weight: 3 lbs
Dimension: 4.2" x 6.75" x 18.20"


BOP20HV 5 Gallon Coolant Stem - BP20X-COABP20X-COA 5 Gallon Coolant Stem Kit with Hose
Part No# BP20X-COA
Suitable for premix and concentrate coolants
Complete with Coolant Stem and 5ft of 1/2" hose with On Demand Nozzle and includes a unique green gun hook for easy identification.
Weight: 3.5 lbs
Dimension: 4" x 6.5" x 26.75"


BP20X-ALA 5 Gallon ATF Stem - BP20X-ALABP20X-ALA 5 Gallon ATF Stem Kit with Hose
Part No# BP20X-ALA
Suitable for all ATF fluids
Complete with ATF Stem and 5ft of 1/2" hose with On Demand Nozzle and includes a unique red gun hook for easy identification.
Weight: 3.5 lbs
Dimension: 4" x 6.5" x 26.75"


BOP20/60 Meters & Nozzles

BOPHV Meter & Nozzle with 5FT HoseBOPHV Meter & Nozzle with 5FT Hose
Part No# BP-MGHV
BOPHV Meter Gun (oz, pints, qts, gal, liters, deciliters) with 5ft of 3/4in Premium Clear PVC Spiral Wound Hose and On-Demand Nozzle.
Weight: 4 lbs
Dimension: 6" x 8" x 20"


BOPHV Meter & Nozzle with 10FT HoseBOPHV Meter & Nozzle with 10FT Hose
Part No# BP-MGHV10
BOPHV Meter Gun (oz, pints, qts, gal, liters, deciliters) with 10ft of 3/4in Premium Clear PVC Spiral Wound Hose and On-Demand Nozzle.
Weight: 5 lbs
Dimension: 2" x 15" x 15"


BOPHV Meter & Nozzle with 20FT HoseBOPHV Meter & Nozzle with 20FT Hose
Part No# BP-MGHV20FT
BOPHV Meter Gun (oz, pints, qts, gal, liters, deciliters) with 20ft of 3/4in Premium Clear PVC Spiral Wound Hose and On-Demand Nozzle.
Use with 5 gallon (BOP20HV) or 16 and 55 Gallon (BOP60HV)
Weight: 7 lbs
Dimension: 5" x 21" x 21"


BOPHV Nozzle with 10FT HoseBOPHV Nozzle with 10FT Hose
Part No# BP-HV10FT
10ft of 3/4in Premium Clear PVC Spiral Wound Hose and On-Demand Nozzle.
Meter is not included in this option.
Use with 5 gallon (BOP20HV) or 16 and 55 Gallon (BOP60HV)
Weight: 3 lbs
Dimension: 3" x 15" x 15"


BOPHV Nozzle with 20FT HoseBOPHV Nozzle with 20FT Hose
Part No# BP-HV20FT
20ft of 3/4in Premium Clear PVC Spiral Wound Hose and On-Demand Nozzle.
Meter is not included in this option.
Use with 5 gallon (BOP20HV) or 16 and 55 Gallon (BOP60HV)
Weight: 5 lbs
Dimension: 4" x 20" x 20"


BOP20/60 Accessories

BOPHV Power HeadBOPHV Power Head
Part No# BP20-PH
Works with all BOP Products
Locks on and off the BOP Stem quickly & easily.
Use one Powerhead for multiple stems.
Generates up to 1.5+ GPM with HV BOP Stem
Battery slides and locks into side mount
Weight: 2.8 lbs
Dimension: 4.25" x 6" x 7.25"


BOPHV Impeller and Seal KitseBOPHV Impeller and Seal Kits
Oil Impeller/Seal Kit Part No# BP-1K
ATF Impeller/Seal Kit Part No# BP-2K
Coolant Impeller/Seal Kit Part No# BP-3K
Includes Diaphragm and Plunger Replacement. Impeller and O-Ring Replacement
Weight: 1 lbs
Dimension: 1" x 4" x 6.25"


Spare 18V Rechargeable 2.0Ah BatterySpare 18V Rechargeable 2.0Ah Battery
Part No# BPB-20AH
Works with all BOP Products
18V 2.0 AMP LI-ION Battery with smart technology
Delivers up to 40GAL per charge – Highly Recommended
18V Li-Ion Smart Technology Battery
Full Charge in 45 minutes
Weight: 2 lbs
Dimension: 2.3" x 6" x 2.4"


18V 2.0Ah Battery Charger18V 2.0Ah Battery Charger

Part No# BP20-PH
Works with all BOP Products
Macnaught Class 2 Battery Charger – Model No: MBC-US. 100-120VAC 50-60Hz, 65W, 1.0A90VA
Use one Powerhead for multiple stems.
Generates up to 1.5+ GPM with HV BOP Stem
Battery slides and locks into side mount
Weight: 2 lbs
Dimension: 3" x 6" x 7"
